Product Features

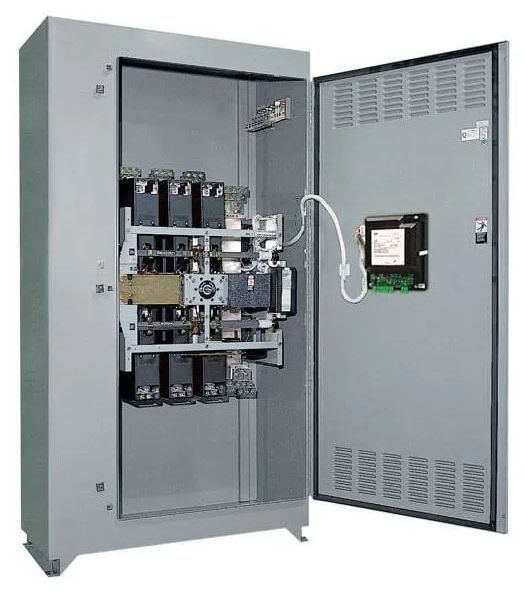

ASCO Automatic Transfer Switch Manufactured by Schneider Electric.
With an ATS you are protected 24 hours a day, seven days a week. When the utility power fails, the ATS automatically starts the generator set and transfers the load once the generator has reached proper voltage and frequency. This happens in a matter of seconds after the power failure occurs. As soon as the utility power has been restored, the ATS will automatically switch the loadback and, after a time delay, shut down the engine generator.
UL 1008
Listed to UL 1008 standard for total system loads for automatic transfer switches.
Meets NFPA 110
Meets NFPA 110 for Emergency and Standby Power Systems and the National Electrical Code Articles 700, 701 and 702.
Service Entrance Rated
Combines automatic power switching with disconnecting, grounding, and
bonding required for use as service entrance equipment.
True Double-Throw Operation
The inherently inter-locked, single solenoid design prevents connections to both
sources at the same time.
Series 300 Group G Controller
Easy-to-navigate 128×64 LCD display with keypad provides LED indicators for switch
position, source availability, not in auto mode, and alert condition. The controller also includes test and time delay bypass soft keys.
Withstand and Close-On Rating
Maximum of 65kA when used with circuit breakers.
Designed to Fit Anywhere
The ASCO Automatic Transfer Switch, 300 series line represents the most compact design of automatic power transfer switches in the industry. With space in electrical closets being at a premium, the use of wall or floor mounted ASCO Transfer Switches assure designers optimum utilization of space. All transfer switches through 2000 amperes are designed to be completely front accessible; permitting the enclosures to be installed flush against the wall while allowing installation of all power cabling and connections from the front of the switch. Additionally, cable entrance plates are also standard on the 1600 and 2000 amperes units to install optional side-mounted pull boxes for additional cable bending space.
