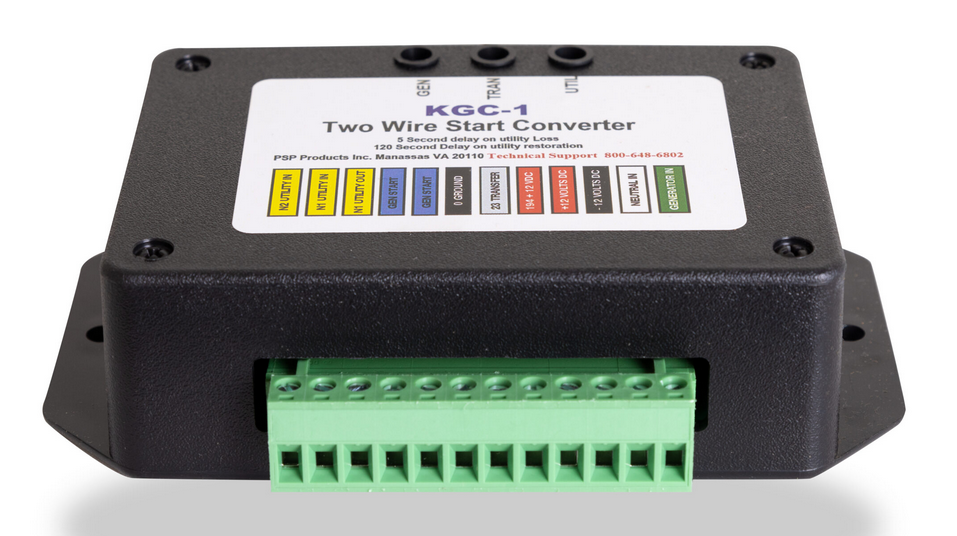

KGC-1 120/240v Single Phase

Features

• Allows any 2-wire start generator to be installed
without having to change the transfer switch or
wiring between the transfer switch and generator
• Provides the necessary voltage sensing, timing
functions and switching circuits required for
automatic operation
• Works with Generac® and Briggs & Stratton®
transfer switches
• Utility loss timer selectable 5 seconds or 30 seconds
• Generator cool-down: 10 seconds, 300 seconds,
or 600 seconds
• Utility return transfer timer selectable between 30
seconds, 129 seconds, or 600 seconds
• LED lights to indicate utility mode, generator mode,
and transfer
• 3-phase models available - consult factory
• 5 year warranty

How it Works

When utility power fails, the KGC-1 will pause for
5 seconds to ensure an actual power outage has
occurred. The KGC-1 will then initiate a 2-wire
generator start signal, starting up the generator. After a
10 second warm-up period the KGC-1 will confirm the
generator voltage is within acceptable levels and will
then output the generator transfer signal.
When utility power is restored, the KGC-1 will determine
power is stable and within 10 seconds the generator
will start the cool down period. After 129 seconds
the KGC-1 will automatically transfer the power back
to utility.



          KGC-1  Spec Sheet
