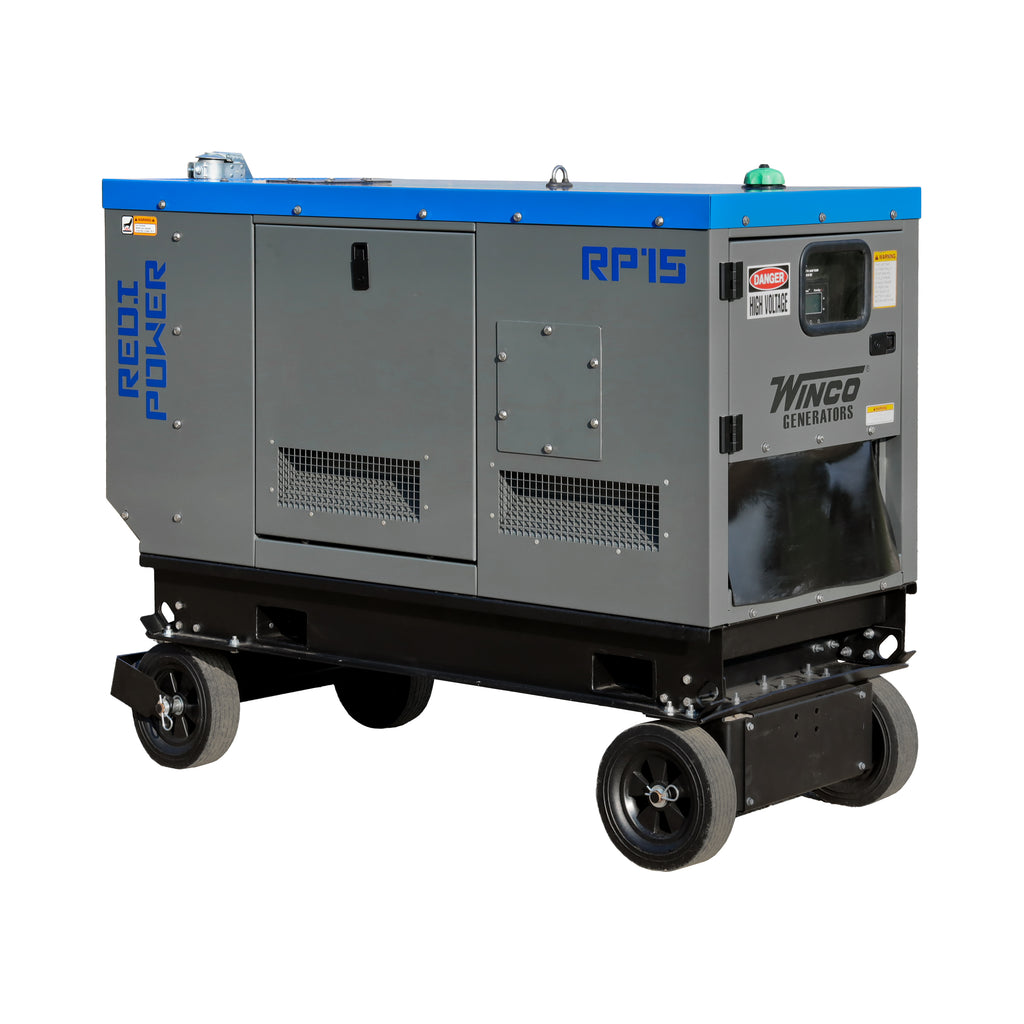

15kW RP15 Portable Generator by Winco

Winco

$ 14,800.00 $ 16,000.00
SKU: 60152254-031

Product Features



RP15
     The newest in our RP line up, the RP15 has been designed to
     bring a lot of power in a compact footprint.
120/240V Single Phase
     This model is only offered in a single phase configuration.
Yanmar Industrial Engine
     High-performance technology with the maximum in engine life
Stamford Generator End
     Brushless industrial generator end with automatic voltage control.
Fork Pockets
     Convenient fork pockets integrated into the unit.
 E-Stop
     Quickly shut down the unit in case of an emergency
Single Point Lifting Eye
     One lifting eye for quick and easy maneuvering.
Oil Field Skid
     Ready to work with its rugged design with fuel tank
     and containment.

Additional Information

Watts - Standby

120/240V 1-Ph: 30,000
120/208V 3-Ph: 30,000
277/480V 3-Ph: 30,000

Watts - Prime

120/240V 1-Ph: 27,000
120/208V 3-Ph: 27,000
277/480V 3-Ph: 27,000

Amps - Standby

120/240V 1-Ph: 125
120/208V 3-Ph: 104
277/480V 3-Ph: 45

Amps - Prime

120/240V 1-Ph: 112
120/208V 3-Ph: 93
277/480V 3-Ph: 40

Voltage Regulation

AVR (Automatic Voltage Regulator)

Fuel

Diesel

Emissions

CARB/California, EPA Prime, EPA Standby

Dimensions

150" x 71" x 88"

Weight

4,300 lbs

Unit Warranty

1/Year/2,000 Hours

Assembled in

USA


Additional Options for the RP15:

Dolly Kit

Start Battery

Maintenance Kit

Plug



Spec Sheet              Open Skid Manual

     Manual                          Manual



ComAp Controller            Housed Outline Drawing

          Manual                                        Manual
