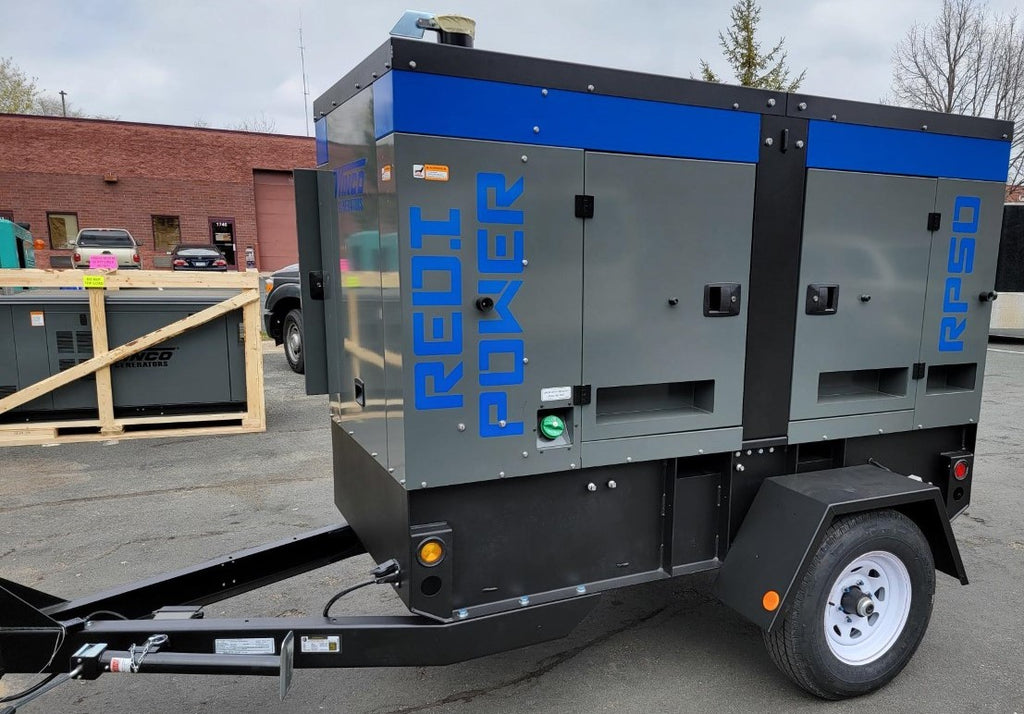

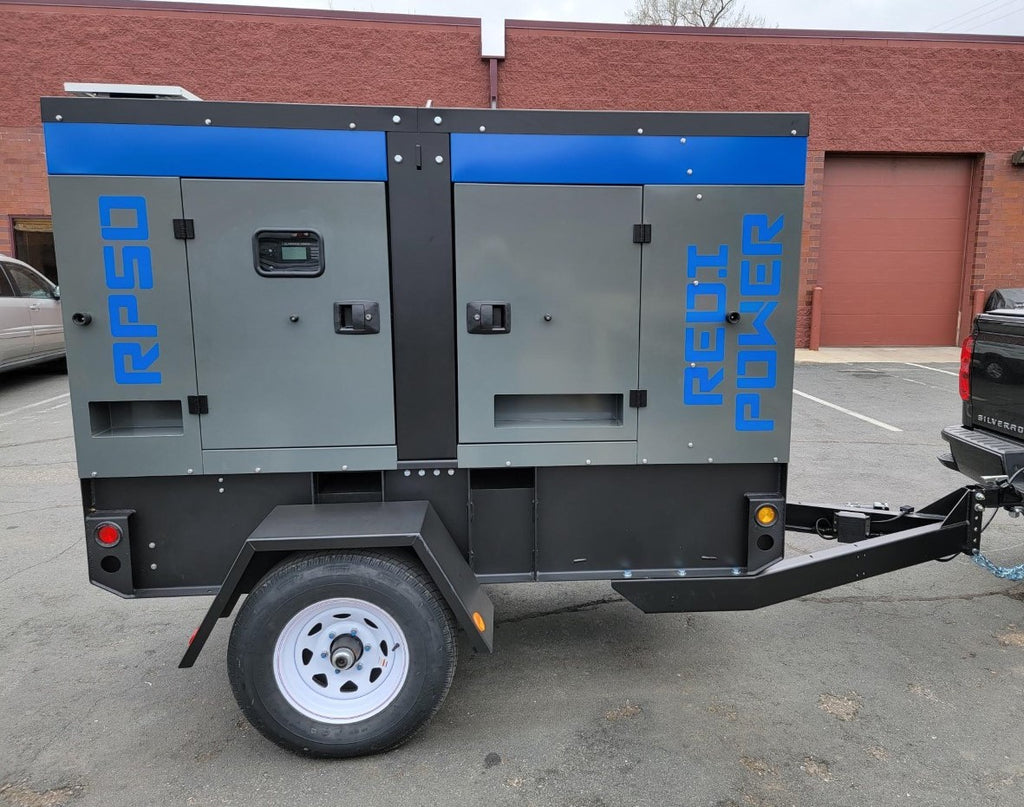

RP50 (Open Skid/Housed/Towable)

Winco

$ 61,000.00
SKU: RP50 -Towable

Product Features

RP50
     Our first Tier IV Final mobile diesel generator. We have added
     new features and more options to suit your specifications.
FPT Industrial Engine
     We have had a strong partnership with FPT for many years,
     using the new F5 engine was an easy decision.
Stamford Generator End
     Brushless industrial generator end with automatic voltage control.
Switchable Voltage
     Easily switch from single phase to three phase.
Fork Pockets
     Convenient fork pockets integrated into the unit.
External E-Stop
    Located outside the unit in case of an emergency.
Single Point Lifting Eye
     One lifting eye for quick and easy maneuvering.
Oil Field Skid
     Ready to work with its rugged design with fuel tank
     and containment.
Fold Down Panel
     Easily access the electrical panel for maintenance.
Cam-Lock Receptacles
     Quickly connects load without hard wiring.
Solar Battery Charger
     Keeps your start battery charged without needing an
     extension cord.


Additional Information

Watts - Standby

120/240V 1-Ph: 47,500
120/208V 3-Ph: 47,500
277/480V 3-Ph: 47,500

Watts - Prime

120/240V 1-Ph: 42,750
120/208V 3-Ph: 42,750
277/480V 3-Ph: 42,750

Amps - Standby

120/240V 1-Ph: 198
120/208V 3-Ph: 164
277/480V 3-Ph: 71

Amps - Prime

120/240V 1-Ph: 178
120/208V 3-Ph: 148
277/480V 3-Ph: 64

Voltage Regulation

AVR (Automatic Voltage Regulator)

Fuel

Diesel

Emissions

CARB/California, EPA Prime, EPA Standby

Dimensions

150" x 71" x 88"

Weight

4,500 lbs

Unit Warranty

1/Year/2,000 Hours

Assembled in

USA



Optional Accessories:

Receptacle Package w/Cam-Locks (With this option enclosure must be housed)

Battery Charger                         Start Battery                              Maintenance Kit



Spec Sheet              Open Skid Manual        DSE7310            Operator Manual

     Manual                             Manual                       Manual                          Manual

Note: 95 Gallon tank that comes with towable will run for 27 hours on full load.
