12VDC Power Supply
HDR15 Series
Step Down Transformer

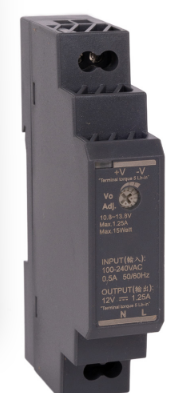

The HDR15 series is a versatile DIN-rail mounted power supply designed to convert 120v AC to 12v DC. With their compact size, they are built to withstand demanding environments while delivering consistent performance. These devices are also equipped with built-in protections against overvoltage, overcurrent, and short circuits. They can be used to power the CX, LX, and RS250 & RS500 Rope CTs.
- 4:1 ultra wide input range
- -40~+85℃ wide working temperature
- Rated current: 1.25A (HDR15-12), .63A (HDR15-24)
- Rated Power: 15W
- Input options: 100-240VAC
- Output options: 12V (HDR15-12) or 24V (HDR15-24)
- No minimum load required
- DC output adjustable (±10%)
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: short circuit, overload, over voltage, input reverse polarity, input under voltage protection
- 4KVdc I/O isolation (reinforced isolation)
- 3 year warranty
Spec Sheet & Install Sheet
