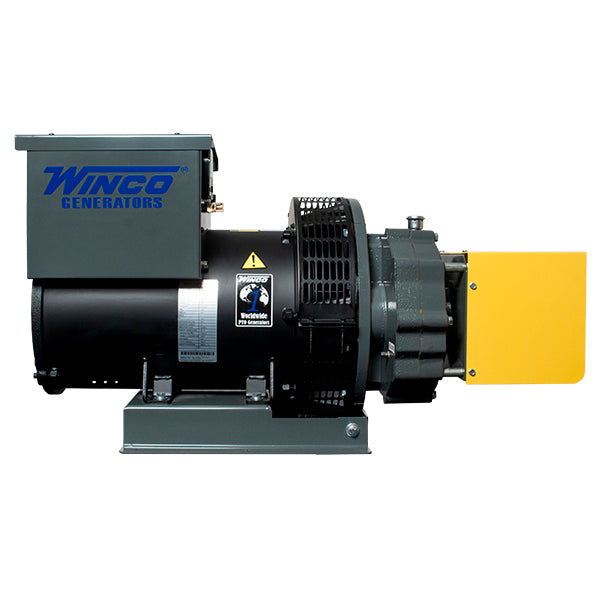

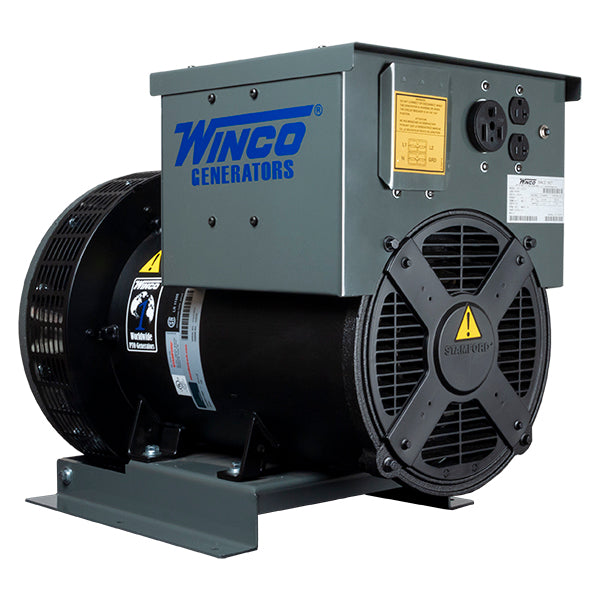

30PTO 120/240V 3-PH 1000 RPM Generator
Product Features
Starting at 31,600 standby watts, this 30PTO is three phase
with a 1000RPM gearcase.
Rugged Design
Our own WINCO gearcases have proven their strength
and durability for over 60 years and will keep doing so
into the future.
Low Harmonic Distortion
Provides clean power for both farm and home.
Frequency Meter
A large 3 1/2″ frequency meter ensures the proper output.
Premium Circuit Breakers
Providing clear and instant identification of a tripped circuit.

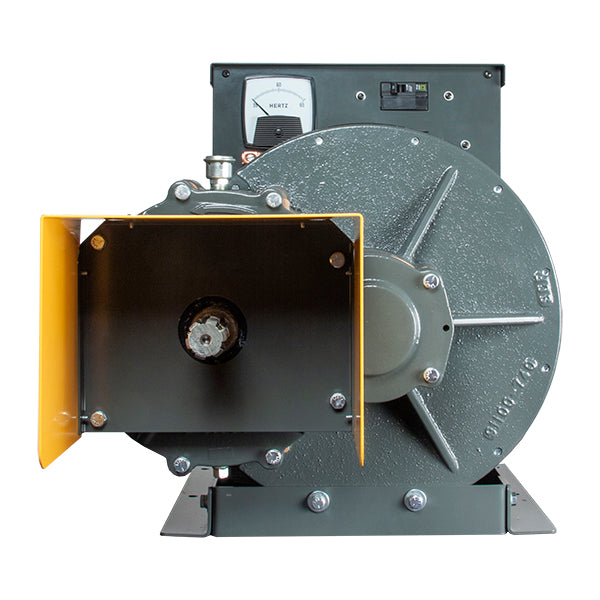

Protective PTO Shield
Safety is always a priority.
5-Wire Anderson Full Power Plug Included
Additional Information
| Standby Watts |
31,600 |
|---|---|
| Standby Amps |
76 @ 1.0 PF/ 94 @ 0.8 PF |
| Continuous Watts |
26,900 |
| Continuous Amps |
71 @ 1.0 PF/ 88 @ 0.8 PF |
| Voltage Output |
120/240 Volt Three Phase |
| Voltage Regulation |
AVR (Automatic Voltage Regulator) |

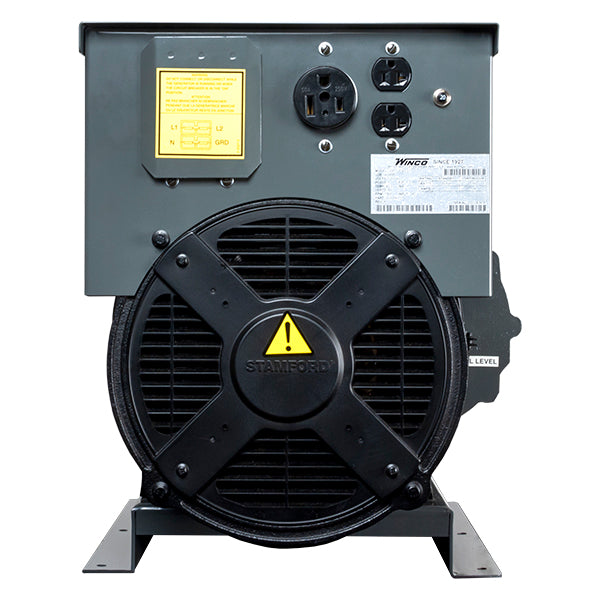

| 120V Receptacles |
(2) NEMA 5-20 20A |
| 120/240 Anderson Connector |
175 Amps |
| 240V Receptacles |
(1) NEMA 6-50R 50A |
| PTO Shaft |
1 3/8" 6-spline |
| Dimensions |
37" x 21" x 24.3" |
| Shipping Weight |
472 lbs. |
| Unit Warranty |
3 Years |
| Assembled In |
USA |
Additional Optional Parts (just add them to your cart)
PTO Shaft - 54961 PTO Shaft / 54328-000 Three Point 260 Shaft
Spec Sheet Parts List Operator Manual
