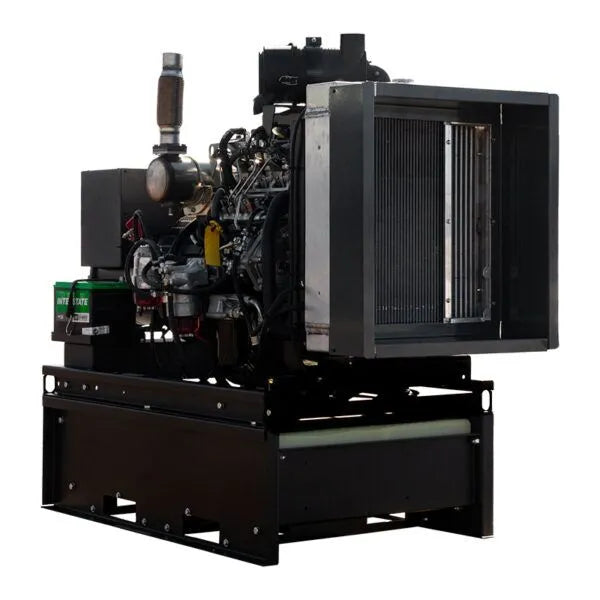

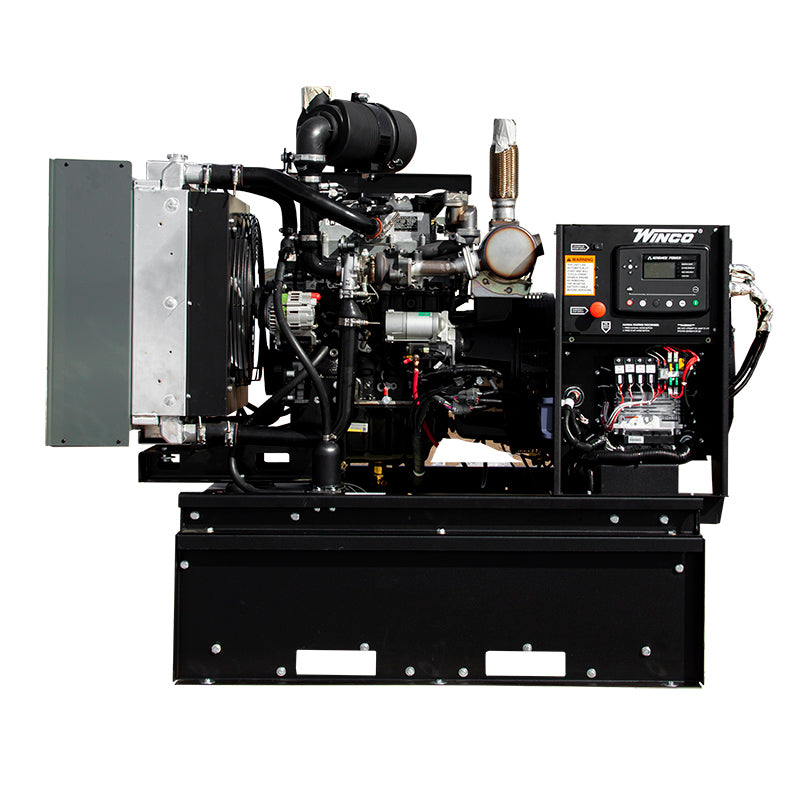

DE40I4 GEN4 (47 Gal. tank option available)

DE40I4 GEN4 (47 Gal. tank option available)
DE40I4 GEN4 (47 Gal. tank option available) DE40I4 GEN4 (47 Gal. tank option available) DE40I4 GEN4 (47 Gal. tank option available)

Winco

$ 27,000.00
SKU: DE40-1

← Previous Product Next Product →

Product Features



Isuzu 4LE2X 2.2 Liter Engine
     Dependable 4 cylinder, 1800 RPM engine.
     EPA compliant, tier 4 final.
Cummins Industrial Generator End
     With automatic voltage regulation.
Rocker Manual Start
     Standard manual start control panel is easy to use with
     an hour meter, voltmeter, and safety features.
Electronic Common Rail
     Excellent frequency control and load pick-up.
Fork Pockets
     Convenient fork pockets integrated into the unit,
     giving you the ability to lift from all directions



Additional Information

Standby Watts

120/240 1-PH: 36,000
120/208 3-PH: 39,000
120/240 3-PH: 39,000
277/480 3-PH: 39,000
346/600 3-PH: 39,000
Prime Watts

120/240 1-PH: 32,400
120/208 3-PH: 35,100
120/240 3-PH: 35,100
277/480 3-PH: 35,100
346/480 3-PH: 35,100
Standby Amps

120/240 1-PH: 150
120/208 3-PH: 135
120/240 3-PH: 117
277/480 3-PH: 58
346/600 3-PH: 47
Prime Amps

120/240 1-PH: 135
120/208 1-PH: 122
120/240 3-PH: 105
277/480 3-PH: 52
346/600 3-PH: 42
Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase
Voltage Regulation

AVR – AS540 +/- 1%
Engine

Brand: Isuzu
Model: 4LE2X
Emissions

EPA Prime
Dimensions

66" x 33" x 43"
Weight

Without Tank: 1,625
With Tank: 1,825 lbs
Unit Warranty

1 year/2000 hours
Assembled In

USA



Additional Required Option:

Controller - DSE7310 / Rocker Manual Start

Additional Optional Equipment:

Start Battery        2.0 Amp Battery Charger        Engine Coolant Heater

Remote E-Stop          Maintenance Kit



Spec Sheet                Outline Drawing

     Manual                          Manual
