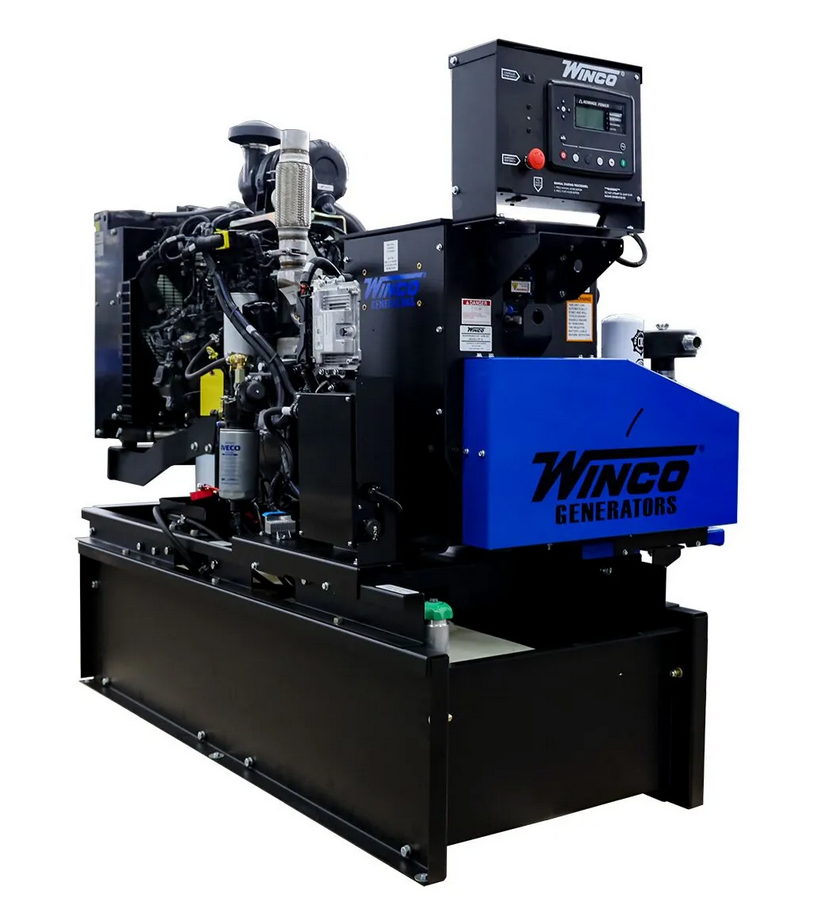

DE4040F4 Diesel Generator Open Skid

DE4040F4 Diesel Generator Open Skid
DE4040F4 Diesel Generator Open Skid

Winco

$ 32,200.00
SKU: DE4040

← Previous Product Next Product →

 Product Features

DE4040F4

Our DE4040 has great features, such as a standard DSE 7310 MKII Controller, the FPT F5 series engine, service access on one side, Electronic Common Rail, and radiator ducting, to name a few.

3.4L Engine
     We all know the saying that “there is no replacement
     for displacement.” A lot of engine manufacturers are
     pushing really small engines into this range for TIER IV
     final. We think a little more engine is key for long life
     and quick responses to load changes. There isnt Urea or
     a need to shutdown for regens with this FPT F5 series
     engine with DOC-PMCAT.
Cummins Industrial Generator End
     With automatic voltage regulation.
Deep Sea 7310 MKII Controller
     Our digital controller is powerful and dynamic with a
     user-friendly interface.
Electronic Common Rail
     Excellent frequency control and load pick-up.
Fork Pockets
     Convenient fork pockets integrated into the unit,
     giving you the ability to lift from all directions


Additional Information

Standby Watts

120/240 1-PH: 45,000
120/208 3-PH: 49,000
120/240 3-PH: 49,000
277/480 3-PH: 49,000
346/600 3-PH: 49,000
Prime Watts

120/240 1-PH: 40,500
120/208 3-PH: 44,100
120/240 3-PH: 44,100
277/480 3-PH: 44,100
346/480 3-PH: 44,100
Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase
Standby Amps

120/240 1-PH: 187
120/208 3-PH: 170
120/240 3-PH: 147
277/480 3-PH: 73
346/600 3-PH: 59
Prime Amps

120/240 1-PH: 168
120/208 1-PH: 153
120/240 3-PH: 132
277/480 3-PH: 66
346/600 3-PH: 53
Voltage Regulation

AVR – AS440 +/- 1%
Engine

Brand: FPT
Model: F5 C
Emissions

EPA Prime
Dimensions

75.07" x 38.04" x 46.86"
Weight

2,000 lbs
Unit Warranty

1 year/2000 hours
Assembled In

USA



Additional Required Option:

Controller - DSE7310         Compressor - CAS Compressor / Rotorcomp Compressor

Generator End - UCI224C-06 / UCI224C-17 / UCI224C-311

Additional Optional Equipment:

Start Battery        5 Amp Battery Charger        Engine Coolant Heater

Remote E-Stop          Maintenance Kit

Compressor Maintenance Kit - CAS RS3 Kit / Rotorcomp NK31 Kit



Spec Sheet                Outline Drawing

     Manual                          Manual
