CT135-SPLIT500
CT135-Split500 CT
CURRENTLY WE ARE WORKING ON GETTING OUR CURRENT ORDERS SHIPPED OUT, WE ARE ALSO WORKING ON GETTING MORE IN STOCK TO SHIP TO YOU FASTER. OUR SUPPLIER IS HAVING TROUBLE GETTING THEM IN.

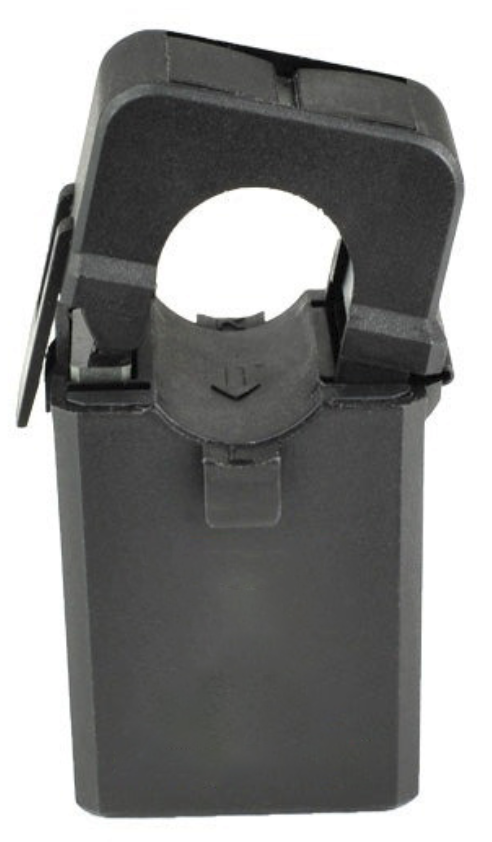

5VDC Output Split Core Current Transformer
Split core current transformers are a great option when needing to monitor demand being used on utility service or generator service. This 500A option can be used with our LSC series programmable controller and our line of EV charger load management SAK-MS devices.
- Hanging installation, crimping terminal output
- Core material: Silicon steel sheet
- Rated input: 500A
- Fire resistance property: UL94-V0
- Operating voltage: 660VAC Max
- Operating temperature: -25℃ to +60℃
- Storage temperature:- 30℃ to +90℃
- Frequency range: 50Hz–60Hz
- Dielectric strength: 3.5KV 50Hz 1min
- Max input: 100%(continuous)/150%(1min)
- Output ripple voltage: ≤5% output voltage
- Accuracy: ±2%
- Output impedance: 7k Ω
- Isolation impedance: >100MΩ(500VDC)
